Elliot is a portable defibrillator that’s easy to use and always within reach. Built for moments when every second counts — helping you act fast, with confidence. Always ready. Always by your side.
Sudden Cardiac Arrest (SCA) is a leading cause of death worldwide — claiming 7 to 9 million lives each year. Nearly 70% of SCAs happen at home. When an AED is used within 3 minutes, survival chances jump to 70%. But with every passing minute, the chance of survival drops by 10%.The average ambulance takes 7 minutes to arrive.
//Source: American Heart Association, NICE, chain‑of‑survival studies.

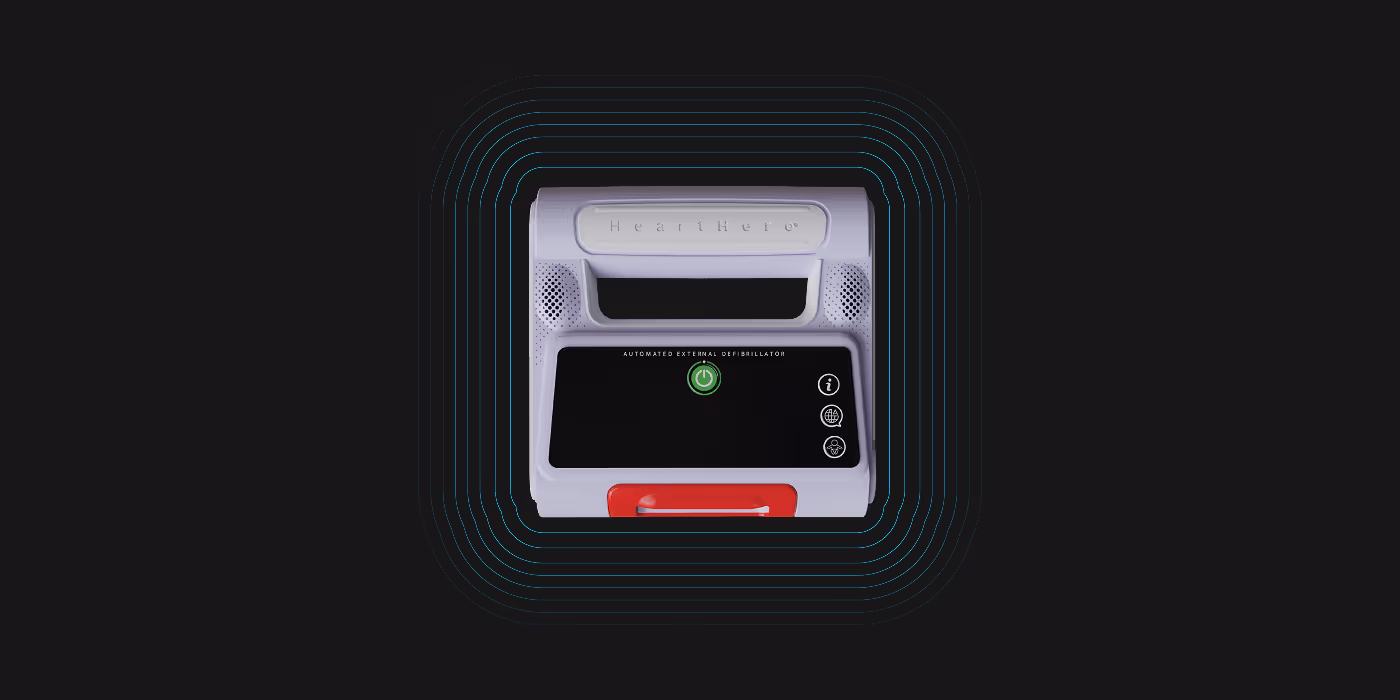

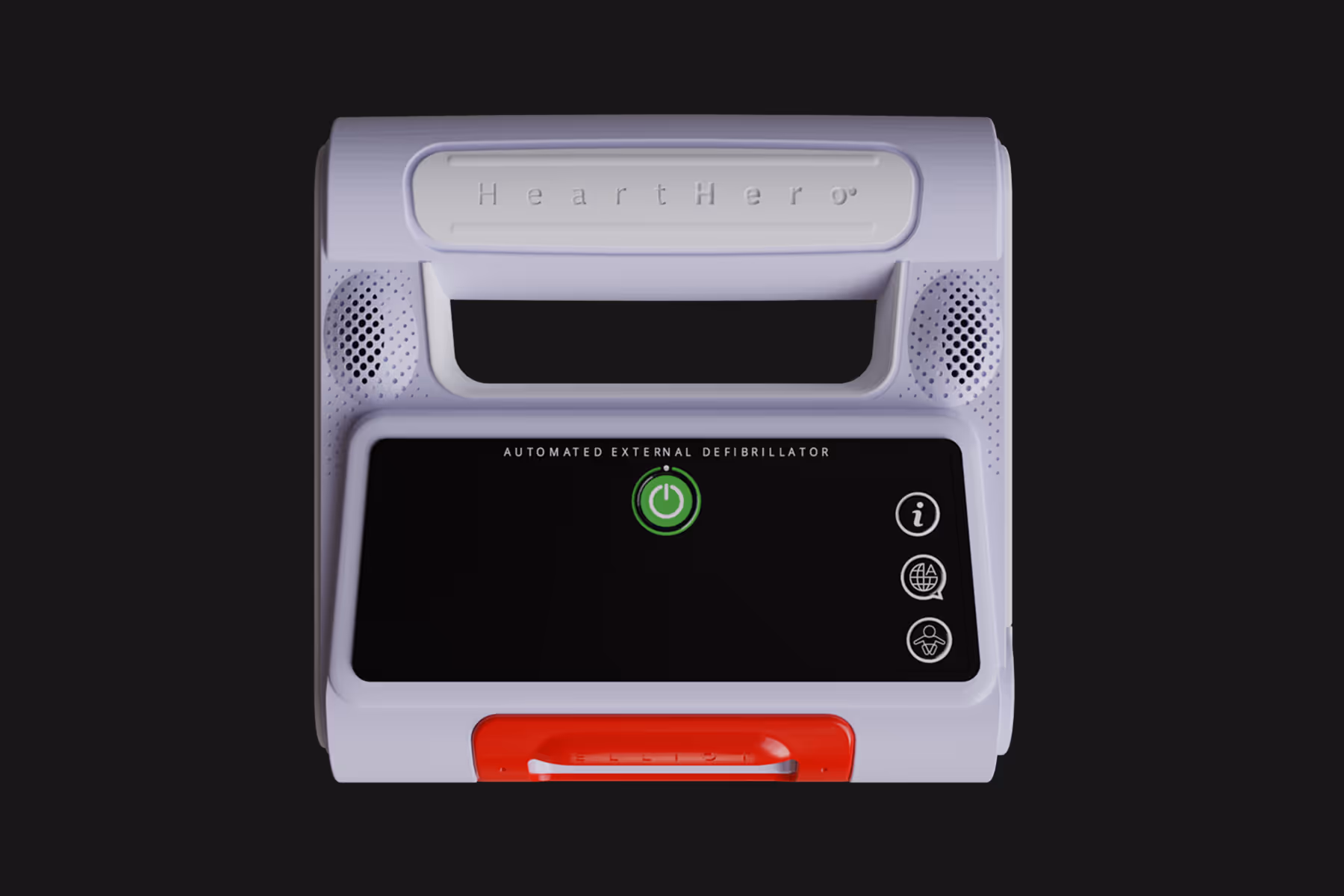

Elliot is a compact, easy-to-use AED designed for real people in real situations. It delivers life-saving power with simplicity, speed, and confidence — wherever you are. Built for homes, travel, and everyday readiness, Elliot puts life back within reach.
//Click to learn more about the highlights listed above, our app ecosystem, and our full list of specifications.

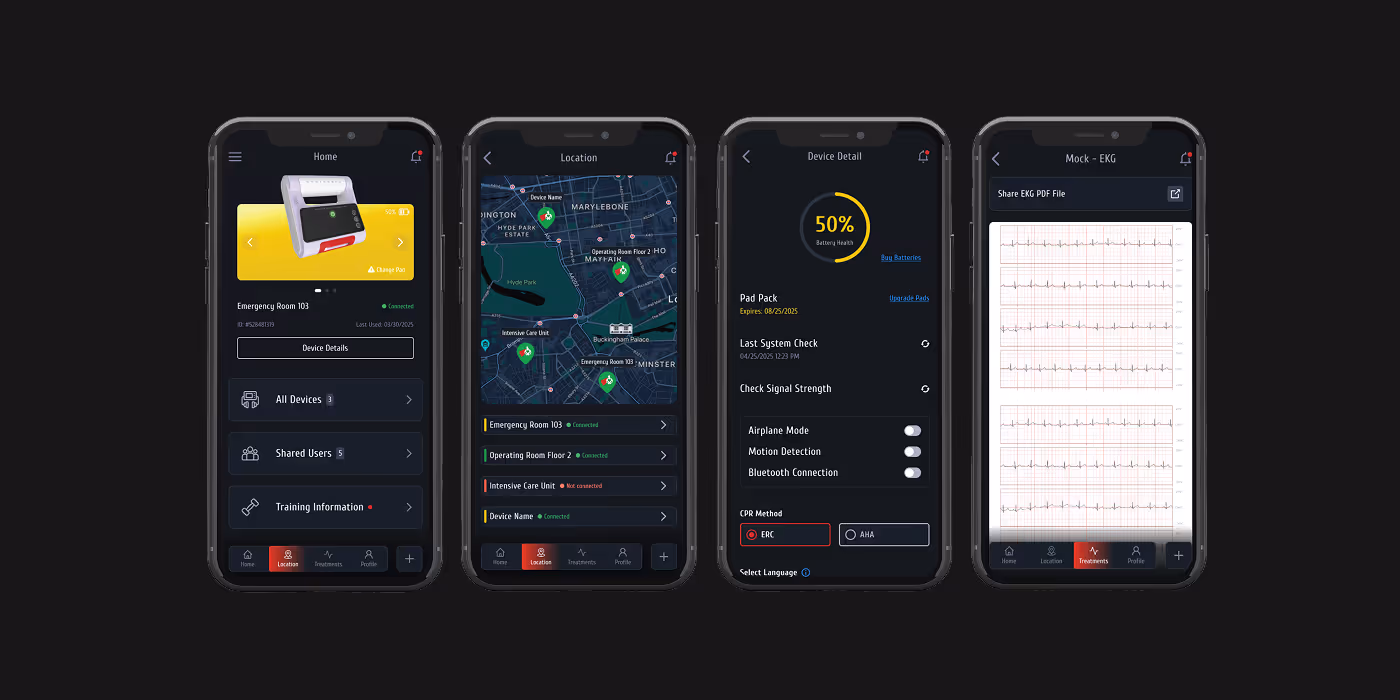

Connects with the HeartHero Elliot AED via Bluetooth® and LT
Displays device information including battery status, pad condition, and self-test results
Maps and tracks locations of owned and shared devices
Generates treatment summary PDF reports with ECG data and time-st
Secure cloud storage and access to device data, firmware, and manuals
Multi-language support based on device settings
Offers step-by-step visual and voice prompts during use
Displays treatment details including ECG data, shocks delivered, and CPR act
CPR mode: compressions-only or compressions with
Share device access with trusted family, colleagues, or caregivers
Push notifications alert users to motion, low battery, or pad expiration
Maps show device locations and status indicators
Built-in training video accessible anytime
•Interactive device configuration for familiarization
•Dashboards and alerts highlight when device needs attention
Accessible Experience: Designed for both first-time users and trained responders
Connected Ecosystem: Links AEDs, mobile technology, and cloud services for improved readines
Data Utility: Supports EMS handoffs, follow-up care, and quality program
Scalable Platform: Structured to support future features and integrations
Compact yet powerful, every component is built for reliability in high-stress environments. From shock precision to environmental protection, these specifications reflect a device designed to perform when it matters most.
Shock power — delivers 150 joules for adults;automatically reduces to 50 joules inChild Mode to match patient size.
Pediatric mode — one-button switch for pediatric modefor patients under 55 lbs (25 kg),adjusting prompts and energy level.
Size — compact design measuringapproximately 6.3” x 6.1” x 1.7” (16cm x 15.5 cm x 4.3 cm) with acomfortable, ergonomic grip.
Weight — lightweight at just 1.5 lbs (0.68 kg),including battery and pads, makingit effortless to carry and store.
Water and dust resistance — tough as nails — sealed against dustand water to work flawlessly anywhere,rain or shine.
Operating temperature — functions reliably between:-4°F and 122°F (-20°C to 50°C)

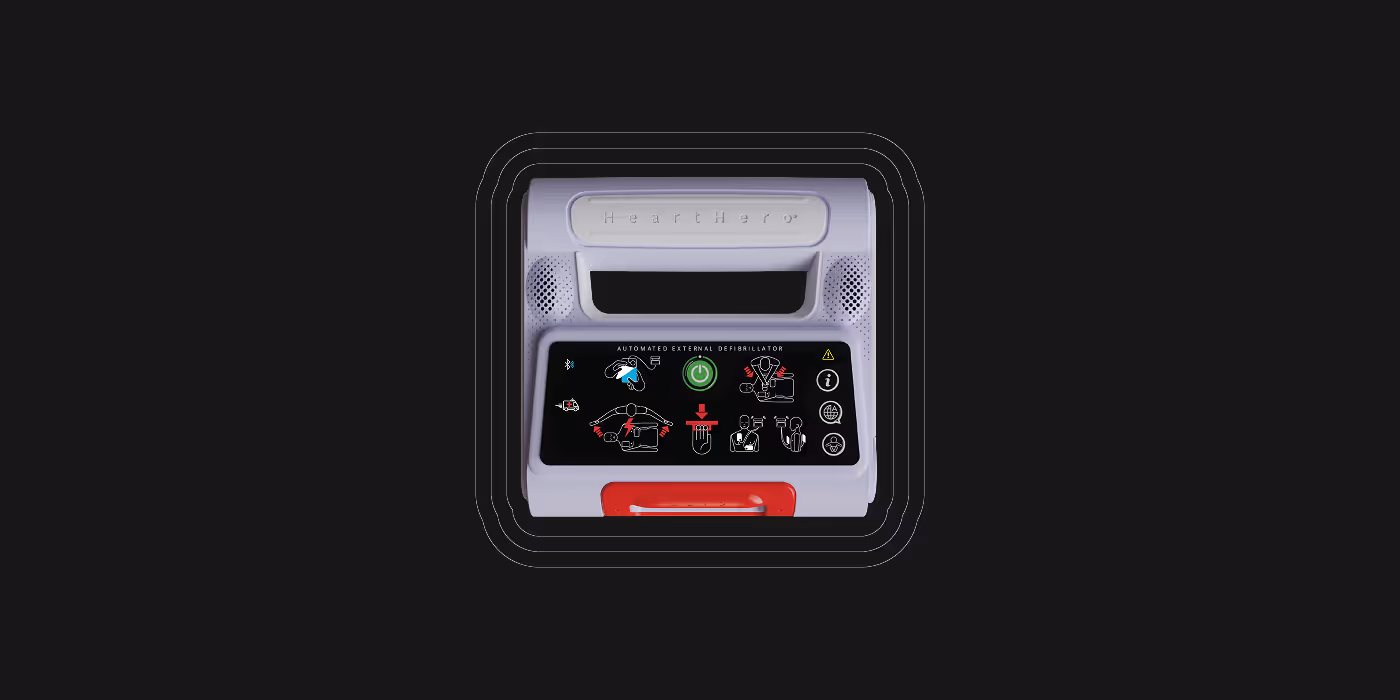

Whether you're a first-time responder or experienced in emergencies, Elliot guides you through every step with voice prompts, visual cues, and intuitive design. It’s lifesaving made approachable, fast, and stress-free. When activated, the display presents clear visual prompts and straightforward instructions, ensuring that anyone—regardless of experience—can take confident, immediate action. The diagram below highlights each element of the user interface and its function during use.
Voice guidance — provides clear, step-by-step voiceinstructions; no prior training required
Visual indicators — bright icons and lights guide youclearly through pad placement andnext steps— no guesswork involved.
CPR guidance — built-in metronome keeps your chestcompressions on beat, helpingmaintain the right rhythm foreffective CPR.
Device status monitoring — stay fully informed—battery life, padcondition, and readiness alerts are allavailable at your fingertips via the app.
Pre-connected electrode pads — super-compact padspeel and stick in seconds— no fumbling,no confusion.
